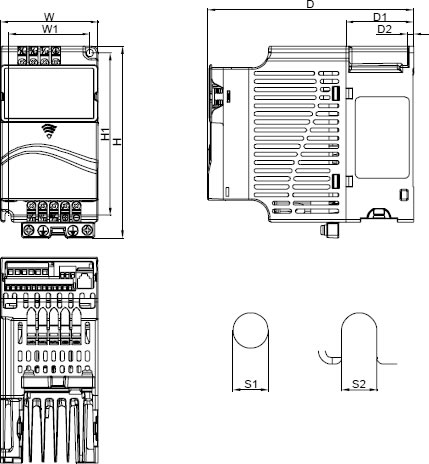

| Ramka | W | W1 | H | H1 | D | D1 | D2 | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|
| A(A1) | 72.0 [2.83] | 60.0 [2.36] | 142.0 [5.59] | 120.0 [4.72] | 152.0 [5.98] | 50.0 [1.97] | 4.5 [0.18] | 5.2 [0.20] | 5.2 [0.20] |
| A(A2) | 72.0 [2.83] | 56.0 [2.20] | 155.0 [6.10] | 143.0 [5.63] | 111.5 [4.39] | 9.5 [0.37] | - | 5.3 [0.21] | - |
| Frame A (A1): VFD002E11A/21A/23A, VFD004E11A/21A/23A/43A, VFD007E21A/23A/43A, VFD015E23A/43A, VFD002E11C/21C/23C, VFD004E11C/21C/23C/43C, VFD007E21C/23C/43C, VFD015E23C/43C, VFD002E11T/21T/23T, VFD004E11T/21T/23T/43T, VFD007E21T/23T/43T, VFD015E23T/43T Frame A (A2): VFD002E11P/21P/23P, VFD004E11P/21P/23P/43P, VFD007E21P/23P/43P, VFD015E23P/43P | |||||||||

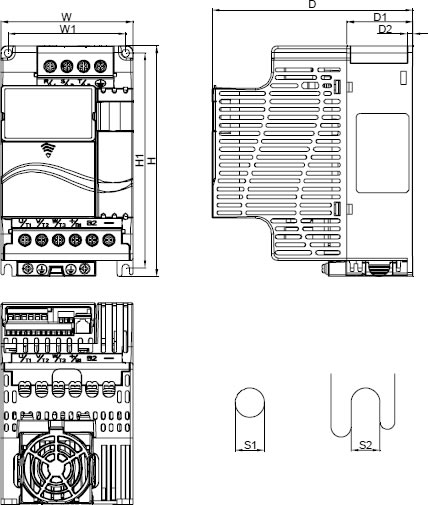

| Ramka | W | W1 | H | H1 | D | D1 | D2 | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|
| B1 | 100.0 [3.94] | 89.0 [3.50] | 174.0 [6.86] | 162.0 [6.38] | 152.0 [5.98] | 50.0 [1.97] | 4.0 [0.16] | 5.5 [0.22] | 5.5 [0.22] |
| Frame B (B1): VFD007E11A, VFD015E21A, VFD022E21A/23A/43A, VFD037E23A/43A, VFD007E11C, VFD015E21C, VFD022E21C/23C/43C, VFD037E23C/43C | |||||||||

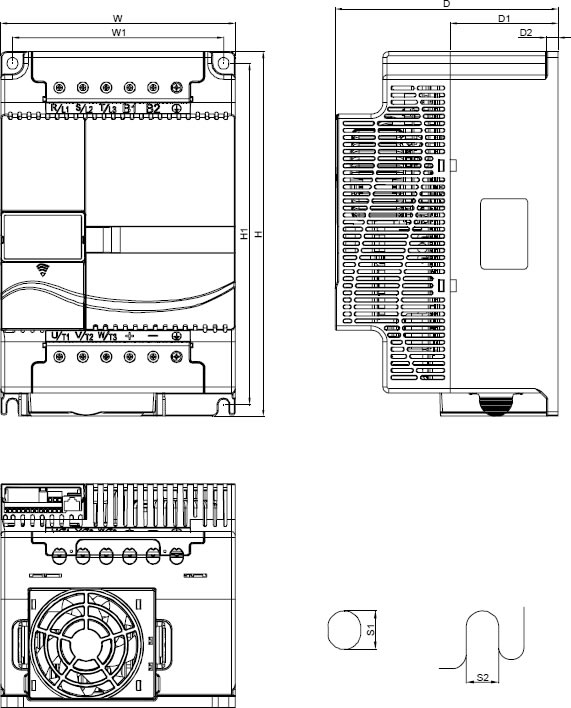

| Ramka | W | W1 | H | H1 | D | D1 | D2 | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|
| C1 | 130.0 | 116.0 | 260.0 | 246.5 | 169.2 | 78.5 | 8.0 | 6.5 | 5.5 |
| [5.12] | [4.57] | [10.24] | [9.70] | [6.66] | [3.09] | [0.31] | [0.26] | [0.22] | |
| Frame C (C1): VFD055E23A/43A, VFD075E23A/43A, VFD110E23A/43A, VFD055E23C/43C, VFD075E23C/43C, VFD110E23C/43C | |||||||||
| Ramka | W | W1 | H | H1 | D | D1 | D2 | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|
| D | 200.0 | 180.0 | 310.0 | 290.0 | 190.0 | 92.0 | 10.0 | 10.0 | 9.0 |
| [7.87] | [7.09] | [12.20] | [11.42] | [7.48] | [3.62] | [0.39] | [0.39] | [0.35] | |
| Frame D (D1): VFD150E23A/23C, VFD150E43A/43C, VFD185E43A/43C, VFD220E43A/43C, | |||||||||
