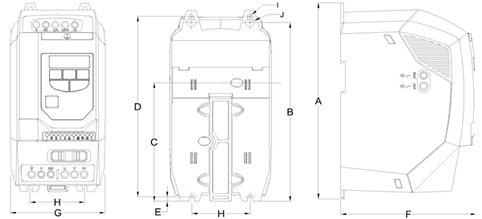

Wymiary - IP20
| Drive Size | A | B | C | D | E | F | G | H | I | J | ||||||||||
| mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | |
| 1 | 173 | 6.81 | 160 | 6.30 | 109 | 4.29 | 162 | 6.38 | 5 | 0.20 | 123 | 4.84 | 82 | 3.23 | 50 | 1.97 | 5.5 | 0.22 | 10 | 0.39 |
| 2 | 221 | 8.70 | 207 | 8.15 | 137 | 5.39 | 209 | 8.23 | 5.3 | 0.21 | 150 | 5.91 | 109 | 4.29 | 63 | 2.48 | 5.5 | 0.22 | 10 | 0.39 |
| 3 | 261 | 10.28 | 246 | 9.69 | - | - | 247 | 9.72 | 6 | 0.24 | 175 | 6.89 | 131 | 5.16 | 80 | 3.15 | 5.5 | 0.22 | 10 | 0.39 |
Wymiary - IP66
| Drive Size | A | B | D | E | F | G | H | I | J | |||||||||
| mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | |
| 1 | 232.0 | 9.13 | 207.0 | 8.15 | 189.0 | 7.44 | 25.0 | 0.98 | 179.0 | 7.05 | 161.0 | 6.34 | 148.5 | 5.85 | 4.0 | 0.16 | 8.0 | 0.31 |
| 2 | 257.0 | 10.12 | 220.0 | 8.67 | 200.0 | 7.87 | 28.5 | 1.12 | 186.5 | 7.34 | 188.0 | 7.40 | 176.0 | 6.93 | 4.2 | 0.17 | 8.5 | 0.33 |
| 3 | 310.0 | 12.20 | 276.5 | 10.89 | 251.5 | 9.90 | 33.4 | 1.31 | 228.7 | 9.00 | 210.5 | 8.29 | 197.5 | 7.78 | 4.2 | 0.17 | 8.5 | 0.33 |
