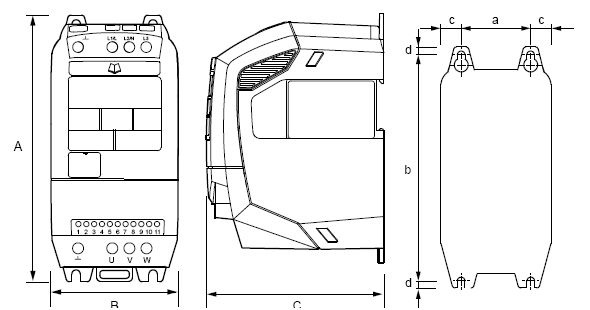

Wymiary |
Wielkość 1 |
Wielkość 2 |
Wielkość 3 |
|
|
A (wysokość) |
[mm] |
154,3 |
201,0 |
248,1 |
|
[in] |
6,10 |
7,91 |
9,77 |
|
|
B (szerokość) |
[mm] |
82,2 |
104,0 |
140,0 |
|
[in] |
3,24 |
4,10 |
5,51 |
|
|
C (głębokość) |
[mm] |
122,6 |
150 |
160 |
|
[in] |
4,83 |
5,90 |
6,30 |
|
|
Ciężar |
[kg] |
1,1 |
2,0 |
4,5 |
|
[lb] |
2,43 |
4,40 |
10,0 |
|
|
a |
[mm] |
50,0 |
63,0 |
80,0 |
|
[in] |
1,97 |
2,48 |
3,15 |
|
|
b |
[mm] |
162 |
209,0 |
247 |
|
[in] |
6,38 |
8,23 |
9,72 |
|
|
c |
[mm] |
16 |
23 |
25,5 |
|
[in] |
0,63 |
0,91 |
1,02 |
|
|
d |
[mm] |
5,0 |
5,25 |
7,25 |
|
[in] |
0,2 |
0,21 |
0,29 |
|
|
Moment skręcają-cy zacisków mocy |
[Nm] |
1,0 |
1,0 |
1,0 |
|
[lb.in] |
8,85 |
8,85 |
8,85 |
|
|
Zalecany rozmiar śrub |
4x M4 |
4xM4 |
4x M4 |
|
