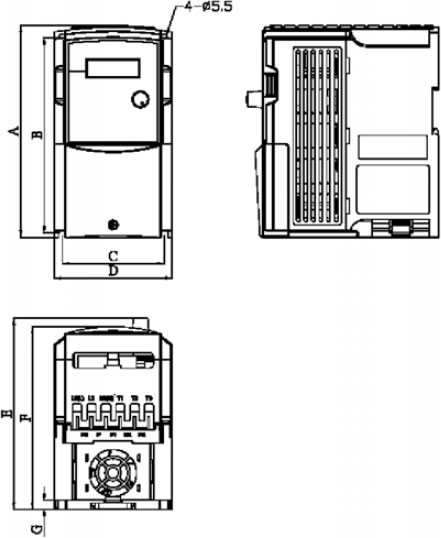

(1) Obudowa 1:
Jednofazowy JNTHBCBA_AC: R500, 0001
Trójfazowy JNTHBCBA_BC/BE: R500, 0001, 0002

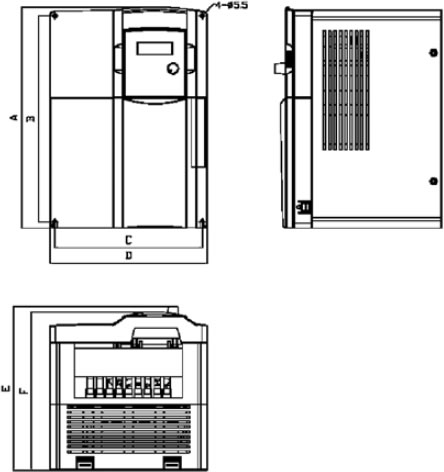

(2) Obudowa 2:
Jednofazowy JNTHBCBA_AC: 0002, 0002
Trójfazowy JNTHBCBA_BC/BE: 0003, 0005
| DANE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| Obudowa 1 Obudowa 2 |
163/6,42 197.1/7.36 |
150/5,9 170,5/6.71 |
78/3,07 114.6/4,5 |
90/3,54 128/5,04 |
147/5.79 148/5,83 |
141/5.55 142,1/5,59 |
7/0.28 7/0,28 |

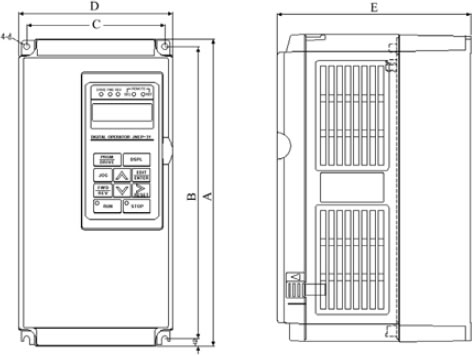

(3) Obudowa 3 : Jednofazowy JNTHBCBA_BC/BE: 7R50, 0010, 0015
| DANE | A | B | C | D | E | A |
|---|---|---|---|---|---|---|
| Obudowa 3 | 260/10,24 | 244/9,61 | 173/6.81 | 186/7,32 | 195/7.68 | 188/7,4 |

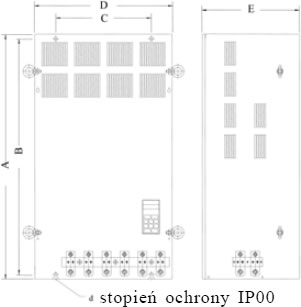

(4) Obudowa 4:
Trójfazowy JNTHBCA_BC;0015, 0020, 0025, JNTHBCBA_BE; 0020, 0025, 0030
(5) Obudowa 5
Trójfazowy JNTHBCBA_BC; 0030, 0040, JNTHBCBA_BE; 0040, 0050
(6) Obudowa 6
Trójfazowy JNTHBCBA_BE; 0060, 0075
| DANE | A | B | C | D | E |
|---|---|---|---|---|---|
| Obudowa 4 | 360/14.17 | 340/13.39 | 245/9.65 | 264/10.39 | 225/8.86 |
| Obudowa 5 | 553/21.77 | 530/20.87 | 210/8.27 | 269/10.59 | 303/11.93 |
| Obudowa 6 | 653/25.71 | 630/24.8 | 250/9.84 | 308/12.13 | 308/12.13 |
